The Equipment
Magna Machine & Tool continues to add equipment as necessary to serve our customers. From CNC Lathes and Mills to Grinders, Inspection Equipment Software and everything in-between, our commitment to offering relevant services with today’s standards for highest-levels of quality and service drives our equipment purchasing decisions.
Our facility has a fooprint of 36,240 total square feet with two separate assembly areas measuring a total of more than 5,200 square feet.
Okuma Genos L3000 CNC Lathe (2)
13.39” max swing, 39.96” between centers
13.39” max swing, 19.96” between centers
Okuma LC 40 Lathe
4 axis, 22″ maximum swing
Okuma LB 15 Cadet Lathe (2)
16″ maximum swing, 19″ between centers
Okuma LB25 Lathe
20″ maximum swing, 32″ between centers
Okuma MB66VB
X axis travel 59″
Y axis travel 26″
Z axis travel 26″
4th axis capability with indexer
Okuma MA550VB
X axis travel 51.5″
Y axis travel 22″
Z axis travel 22″
Okuma MC60VA Vertical Machining Center
X axis travel 49″
Y axis travel 25″
Z axis travel 24″
4th axis capability with indexer
Okuma MC4VA Vertical Machining Center
X axis travel 25.5″
Y axis travel 16.1″
Z axis travel 17.7″
4th axis capability with indexer
Okuma Mx-45 VBE Vertical Machining Center
X axis travel 30″
Y axis travel 18″
Z axis travel 17.5″
4th Axis capability
Okuma MC40VA Vertical Machining Center
X axis travel 26″
Y axis travel 16.5″
Z axis travel 18″
4th Axis capability with indexer
Okuma MX60HB Horizontal machining Centers (3)
X axis travel 39″
Y axis travel 31.5″
Z axis travel 31.5″
Two(2) Pallets 24.8″ x 24.8″
4th Axis Tables Rotate in One Degree Increment
Harrison 600 Lathe 30″ x 92″
LaBlonde Engine Lathe 15″ x 48″
LaBlonde Engine Lathe 18″ x 72″
Clausing-Colchester (2) 15″ x 36″
Clausing Lathe 52″ diameter x 160″ between centers
(4) Southwestern Industries Prototrack Bed Mills
3 axis programmable control
20″ x 40″ travel
(1) Sharp Vertical Mill with Prototrack Edge Control
2 axis programmable control
14″ x 30″ travel
(5) Sharp Vertical Mills
10′ x 51″ with 2 axis digital readouts
(1) Bridgeport Vertical Mill
2 axis digital readouts
10″ x 24″ travel
DeVlieg Jig Mill 43H-48
46″ vertical travel
48″ horizontal travel
(3) axis Anilam digital readouts
DeVlieg Jig Mill 4K-60
60″ vertical travel
60″ horizontal travel
DeVlieg Jig Mill 43H-72
60″ vertical travel
72″ horizontal travel
(3) axis Anilam digital readouts
TOS Horizontal Boring Mill
42″ vertical travel
55″ horizontal travel
(4) axis Anilam digital readouts
Mitsubishi FA20 (.004-.012 Wire)
X=19.69
Y=13.77
Z=11.81
Current EDM Drill Hole Shooter Range .004-.256″ Diameter
X=12.0
Y=8.0
Z=11.5
Mattison
20″ x 60″ Surface Grinder
Kent Surface Grinder
12″ x 24″
Blanchard Grinder
42” Diameter
Okamoto Model OGM-12.40OU External/Internal Grinder
11.81 Max. Grind Dia.
39.37 Max. Between Centers
Moore #3 Jig Grinder
Landis Universal Grinder
10″ x 24″
Heald Internal Grinders

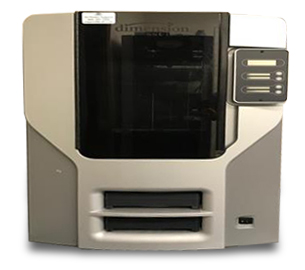

Stratasys Dimension sst 1200es
Miller 250 amp Mig Welder
Miller 351 amp Tig-metallic Welder
Miller 450 amp Mig Welder
Pre-heating oven up to 650 degrees
Thermal Dynamics Professional 52 Cutmaster
Brown & Sharpe Coordinate Measuring Machine
Measuring Range:
X=20″
Y=24″
Z=16″
Numerex Coordinate Measuring Machine
Measuring Range:
X=24″
Y=40″
Z=24″
Wenzel LH1010 CNC Coordinate Measuring Machine
X=38 3/4″
Y=62 3/4″
Z=44″
Sunnen Dial Bore Gages
.060 diameter to 6″ diameter
Micro-Vu
Digital Camera CMM
36,240 Square Feet
2,000 Square Feet Assembly Area 1
3,200 Square Feet Assembly Area 2
SolidWorks
AutoCad
MasterCam
JobBOSS
